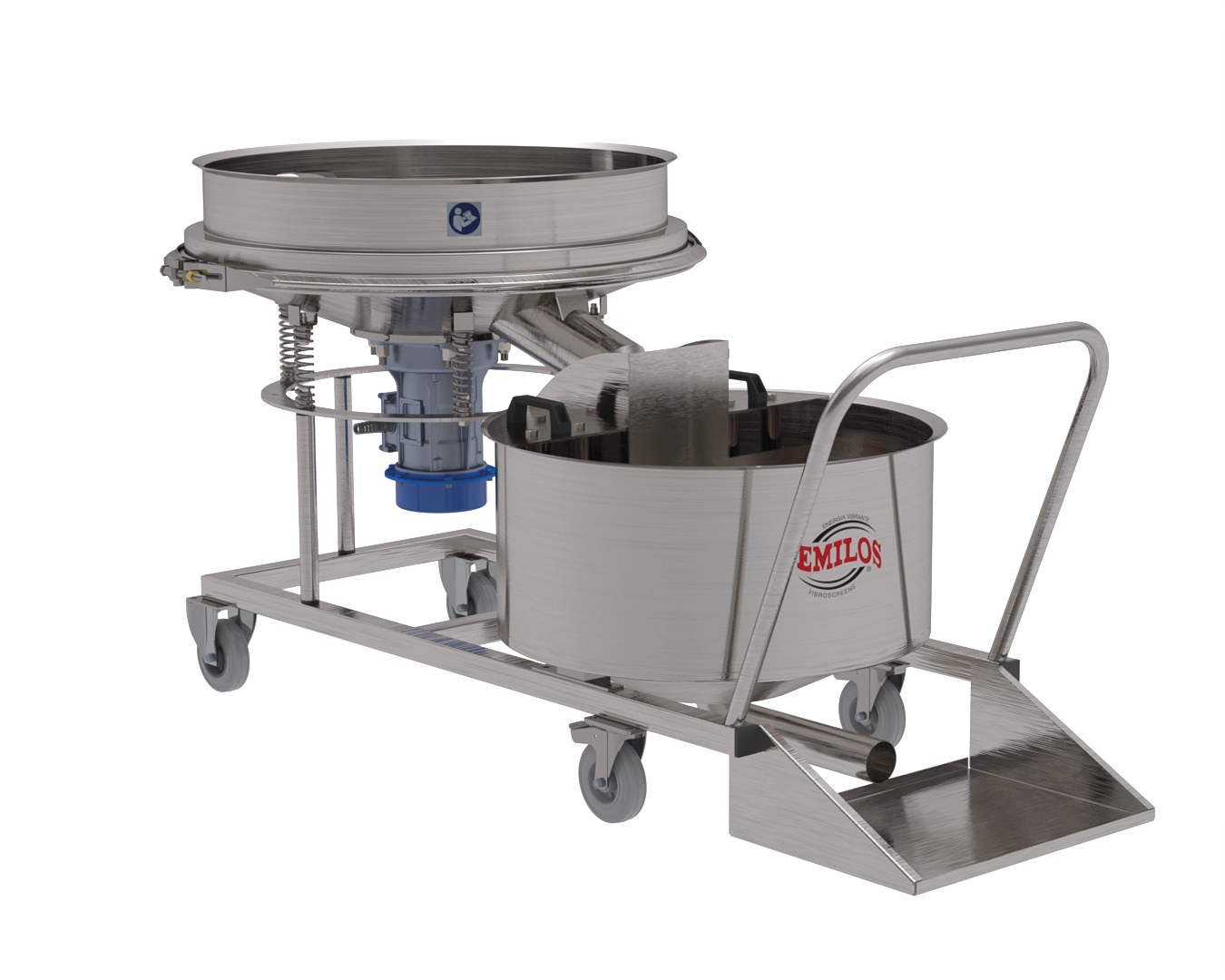

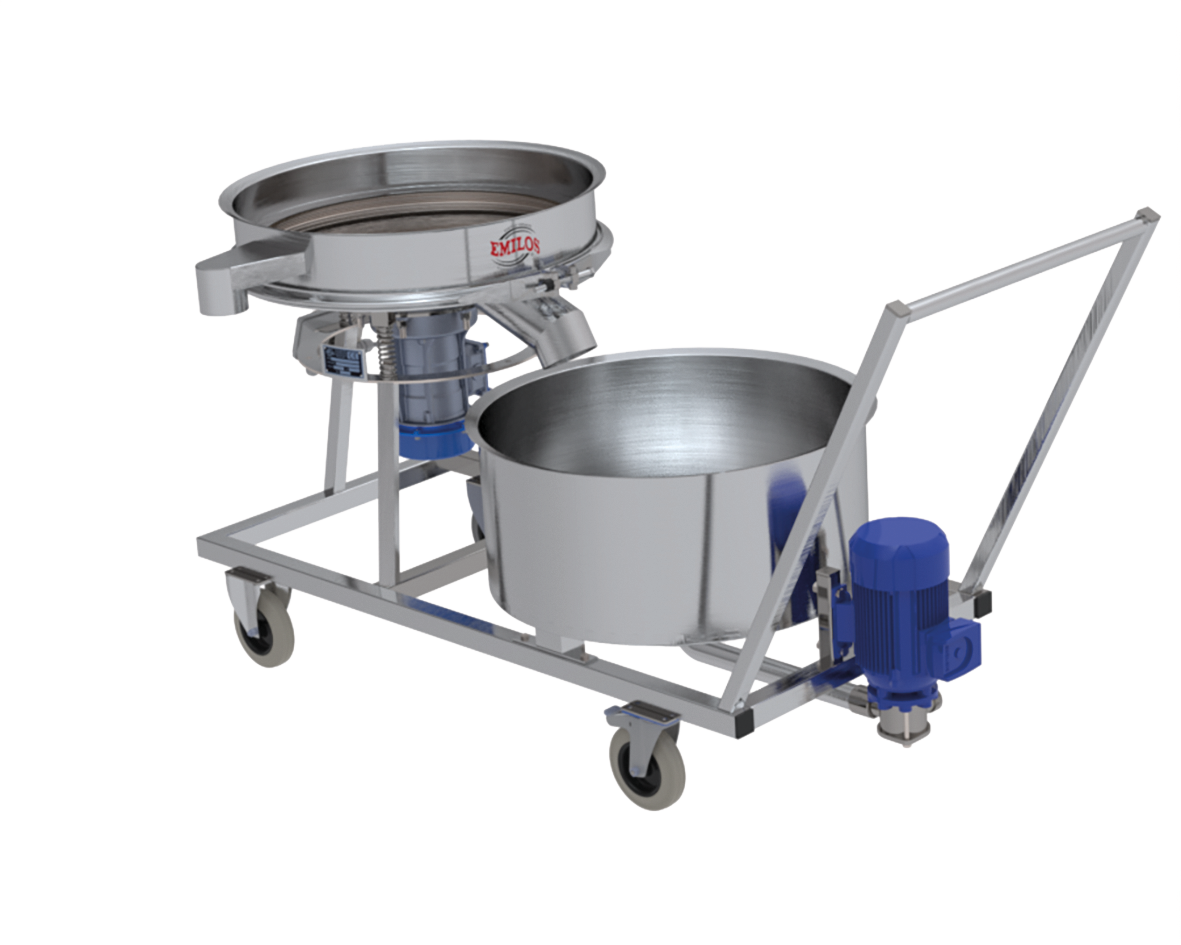

BLOCK series

Dimensions are approximate and subject to change without notice. Modifications/customisation are possible on request.

Product specifications

  • Accessorized with tray, electric centrifugal pump or diaphragm pump and magnetic separators
  • Container with truncated-cone shape (SL), conical convex shape (CR) or monolithic convex shape (CRS)
  • The Emilos brand vibrator motor provides a three- dimensional movement (sussultatory, undulatory and rotary), such as to keep the filtering screen clean and free of blockages
  • The main feature of this vibrating screen is that it is ‘ALL IN ONE’; a single unit, conveniently wheeled so it can be moved when required
  • Made ENTIRELY of AISI 304L stainless steel, or alternatively AISI 316L stainless steel
  • Easy to install
  • Very simple maintenance
  • Extremely easy to clean compared to traditional vibrating screens
  • Quick and independent replacement of the filtering screen
  • Product containment band without corner piece, with all-round filtering screen
  • Extremely practical to move
  • 2 or 4-pole motor drive
  • Possible fitting of screen unblocking system (perforated s/s tray w/rubber spheres or cleaner rings in plastic: screen holding frame with s/s spokes and small timed pneumatic motor)
  • Designed for continuous operation

Data sheet

Ø mm655±850±990±1210±
L mm1450145714651657
H mm1020102010201020
